Bigrep One 3D Printer


SKU: BRO-002 Category: Tag:

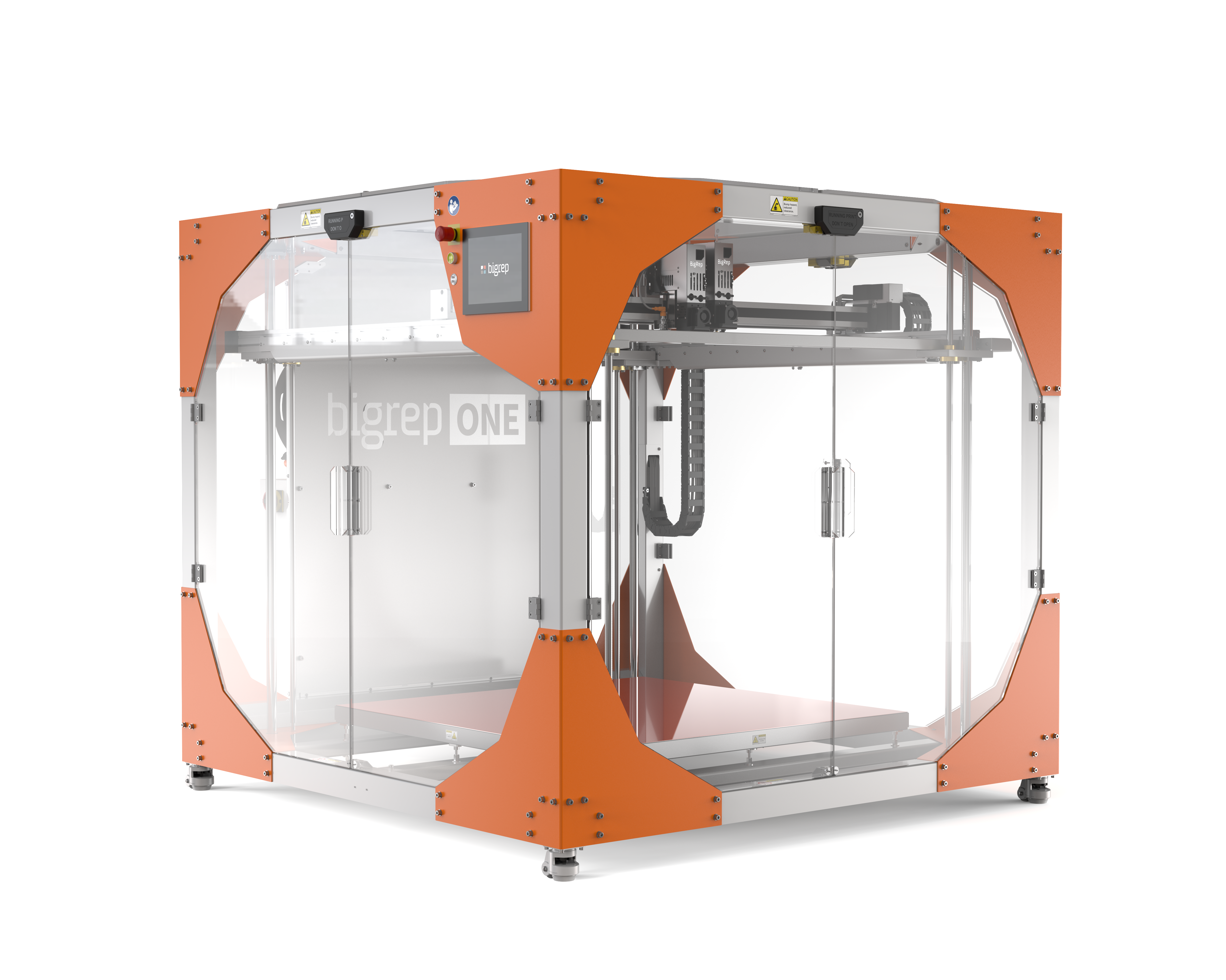

The Big Rep One is a large-scale printer that can produce prints rapidly. Have the ability to create a variety of products at a low cost and boost your design development process.

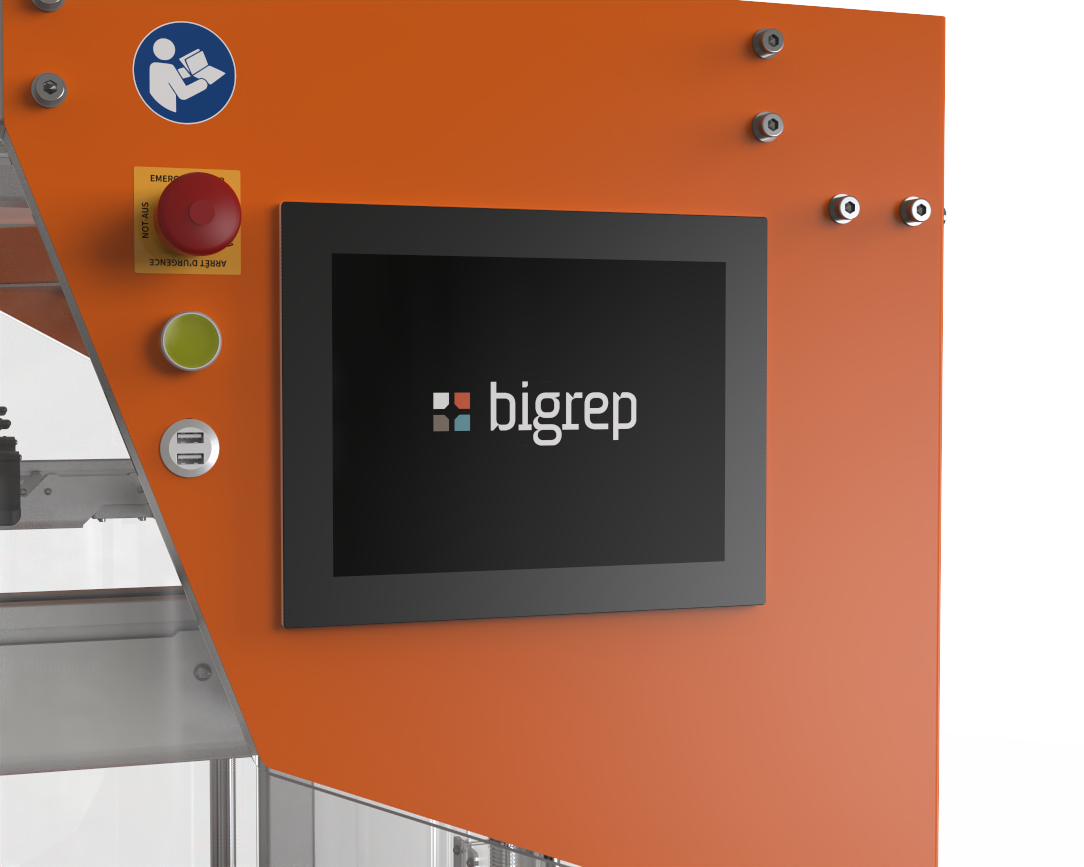

The Big Rep One is a open spaced printer, allowing you to closely monitor prints. The easy to use interface also allows you to edit printer settings as they are being printed.


The BigRep ONE v3 was created to make industrial 3D printing for large-scale objects as easy as possible. Every detail has received our full expertise and experience — for better quality, higher speed, and increased safety.

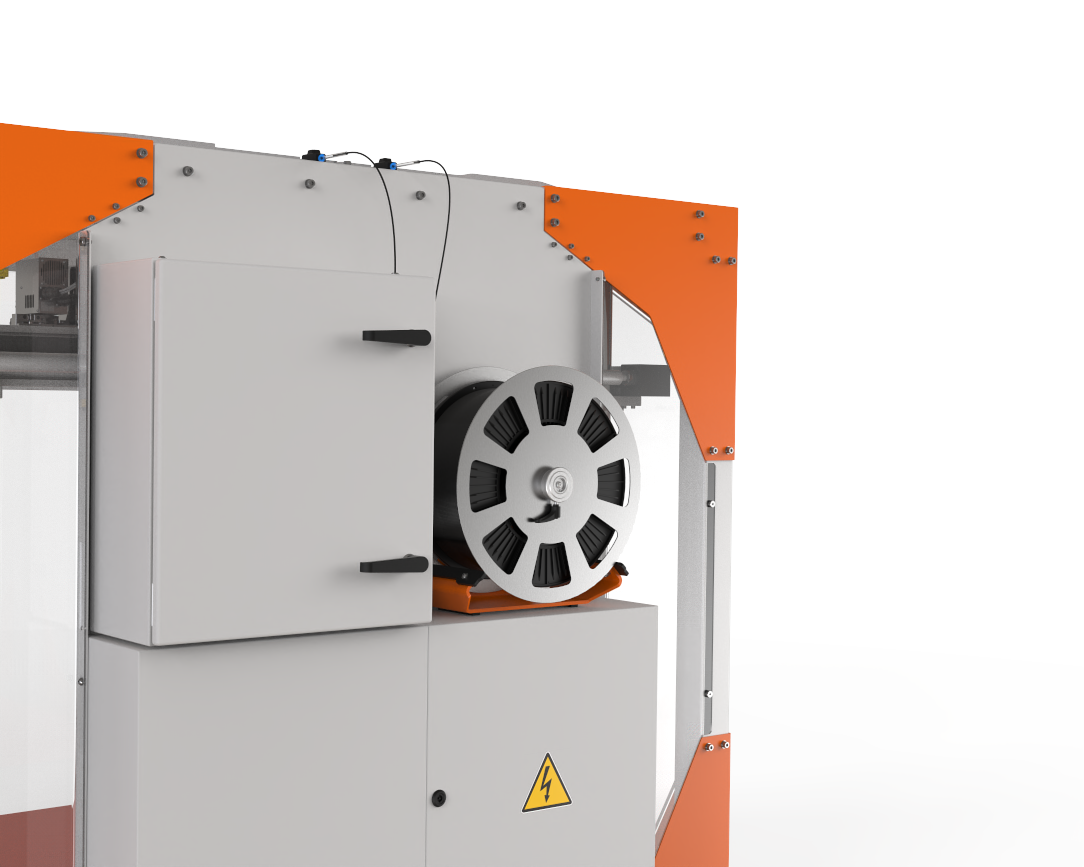

The open format modular print heads, in combination with a large flexible spool holder, provide the ideal 3D printer for manufacturing large-scale objects. The 1 mm nozzle brings the most detailed and precise BigRep ONE prints to date. The BigRep ONE works perfectly in automotive or aerospace industries, as well as entertainment, design or concept modelling. It brings large-scale additive manufacturing on more affordable level in prototyping or designing. The German-engineered BigRep ONE is built to be a workhorse 3D printer that innovators can rely on.


German-engineered to work around the clock, the BigRep ONE is a world-leading large-scale 3D printer at an affordable price point.

BigRep’s international team of experts has designed and manufactured a machine that achieves the best possible conditions for printing large objects. The highest quality machinery enables accuracy, speed and easy access to the print bed for large-format printing of industrial objects.

Industrial users rely on the BigRep ONE for high-speed printing that does not compromise on quality. This is even more pronounced in our new Power Extruder for 0.6 mm, 1 mm and 2 mm nozzles, which enhances prints for a wide range of applications.

Created by BigRep – recent winners of the German Brand Award 2018 – the ONE is a large-scale FFF 3D printer that has been expertly made for industrial professionals by industrial professionals. The workhorse machine won the German Design Award

Why Use Solid Print3D?


Build volume:  1005 x 1005 x 1005 mm

Extruder type:  Two modular extrusion heads

Nozzle diameter:  Standard Extruder with 1 mm nozzle. Power Extruder with 0.6 mm, 1 mm and 2 mm nozzles

Max. Extruder temperature:  250 C

Filament diameter:  2.85 mm

Layer height:  0.1 – 1.4 mm

Monitoring:  Out of filament sensor, webcam

Max. acceleration:  Up to 400 mm/s²

Position repeatability:  ± 0.1 mm

Surface:  Polyimide

Max. temperature:  80 °C

Printer Dimensions:  1850 x 2250 x 1725 mm

Approx weight:  460 kg

Connectivity:  USB, LAN

Power:  208 V – 240 V, 16 A, 50/60 Hz
